3.5ton (250V) trolley locomotive has step-less speed regulation and step speed regulation two kinds of speed adjustment.
The braking system adopts mechanical brake.
Features: large traction, high speed, stable operation, flexible, two levels of transmission, long service life, high efficiency.
|

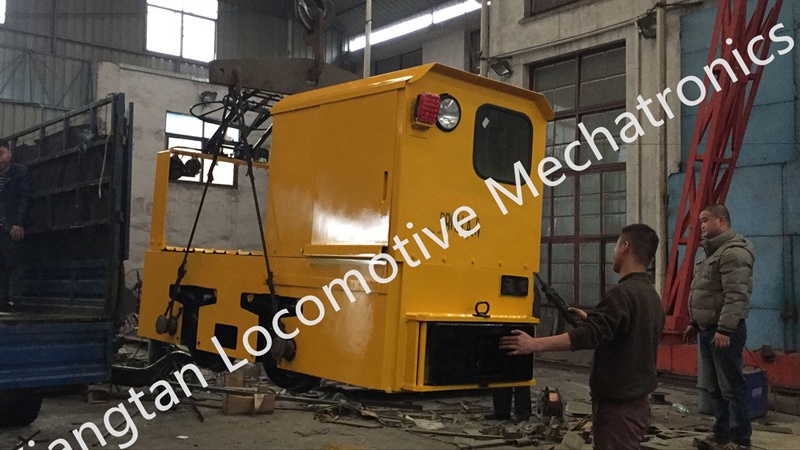

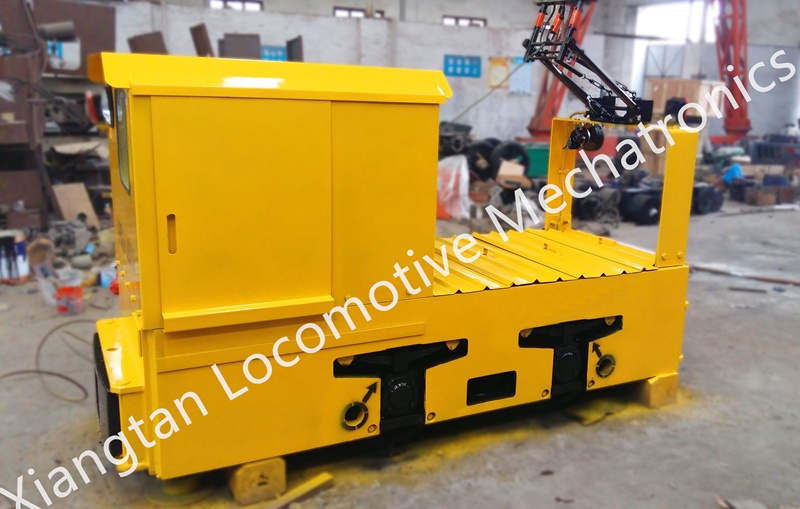

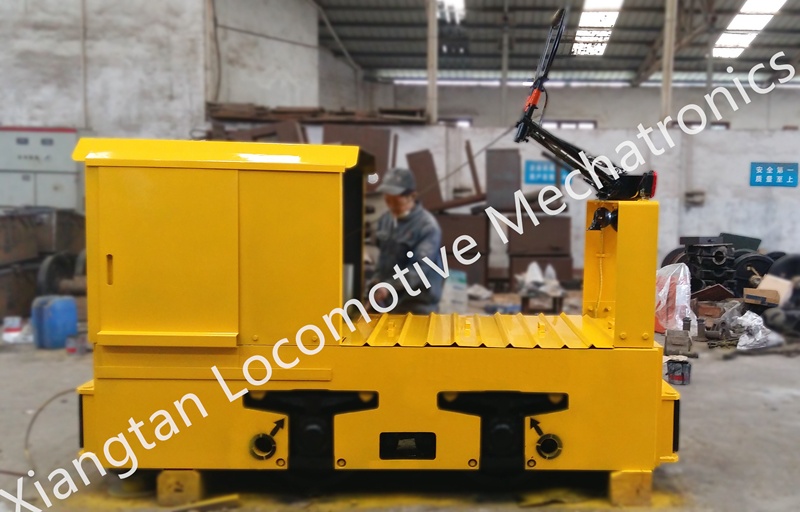

3.5Ton Trolley Locomotive(250V)
|
|
Model
|
CJY3.5/5,6,7,9G
|
|
Adhesive/ Total Weight(T)
|
3
|
|
Track Gauge(mm)
|
500, 600, 762, 900
|
|
Traction(KN)
|
4.7/ 5.74
|
|
Max.Traction(KN)
|
7.36
|
|
Speed(km/h)
|
9.1/ 7.5
|
|
Max.Speed(km/h)
|
16.6/ 15
|
|
DC Voltage(V)
|
250
|
|
Power(KW)
|
12.2*1/ 6.5*2
|
|
Length(mm)
|
2770
|
|
Width(mm)
|
944; 1106; 1244
|
|
Height(mm)
|
1550
|
|
Coupler Height(mm)
|
210/320
|
|
Wheelbase(mm)
|
850
|
|
Wheel Diameter(mm)
|
650/ 520
|
|
Pantograph Height(mm)
|
1800~2000
|
|
Min.Curve Radius
|
6
|
|
Controller
|
Resistance/ IGBT
|
|
Braking Method
|
Mechanical Brake
|
For More Information,please contact us.
