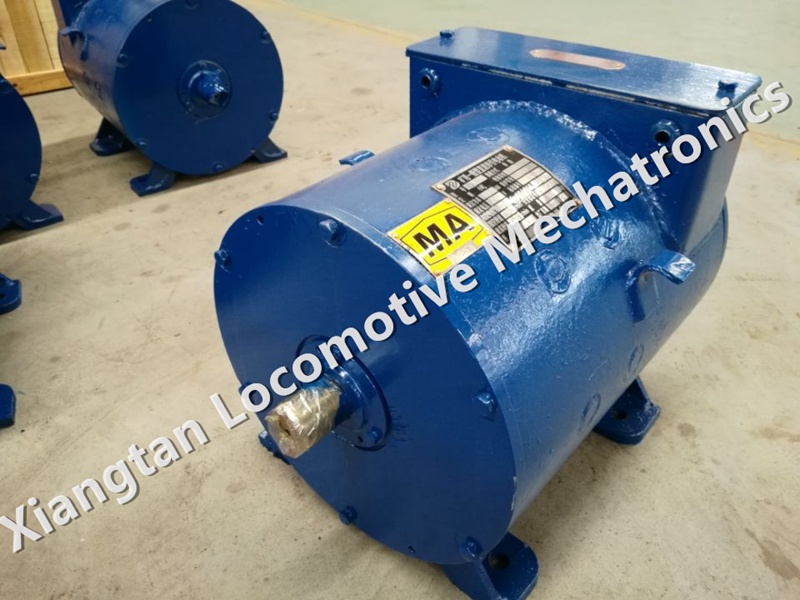

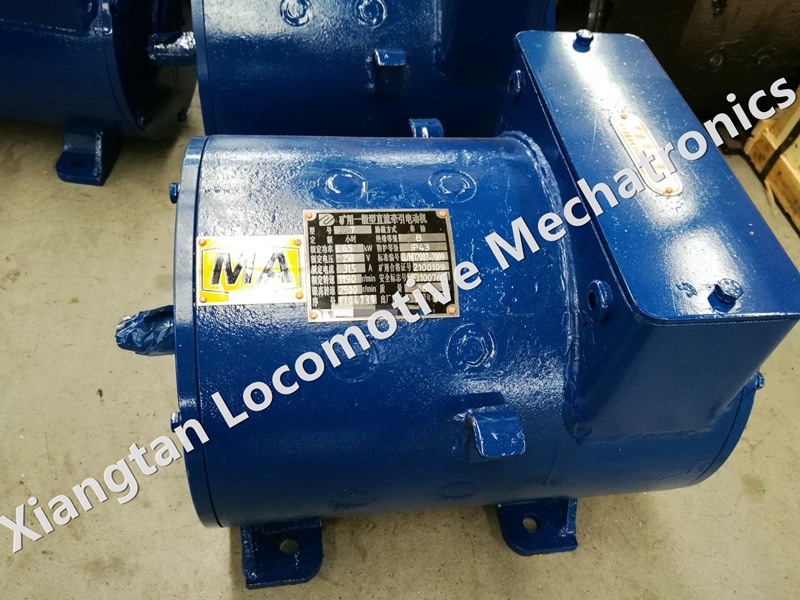

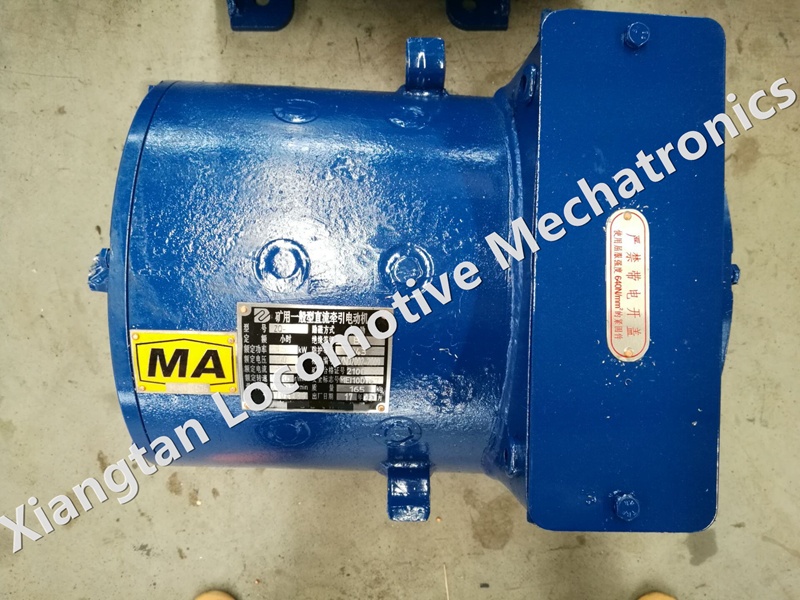

The motor is used as the driving motor of CJY3-6.7.9/250 and CJY1.5-6.7.9/250 mine electric locomotive. It has excellent performance and reliable quality.
This product implementation standard: JB/T6480-1992 "rotary traction motor basic technical conditions" and Q/DBCL021-2007 "mine flameproof DC traction motor".
Specifications Of ZQ-7
|
|
Work Quota
|
Hour Norm
|
Continuous Rating
|
|
Rated Power
|
6.5kw
|
3.1kw
|
|
Rated Voltage
|
250V
|
250V
|
|
Rated Current
|
31.5A
|
15A
|
|
Rated Speed
|
1190r/min
|
1680r/min
|
|
Max. Speed
|
2500r/min
|
2500r/min
|
|
Excitation Methods
|
Series
|
Series
|
|
Insulation Class
|
B
|
B
|
|
Protection Type
|
Fully enclosed self-cooled
|
Fully enclosed self-cooled
|
|
Weight
|
165kg
|
165kg
|
For More Information,please contact us.
