2.5T battery locomotive has three models: normal, safety, explosion-proof.
Main features: small overall dimensions, short wheelbase, flexible, higher brake fast and reliable, simple structure, easy maintenance, suitable for small and medium-sized mine transportation.
|
2.5T Battery Locomotive (48V)
|
|
Model
|
CAY2.5/5,6,7,9G
|
|
Adhesive / total weight (t)
|
2.5T
|
|
Track gauge (mm)
|
500, 600,762 or 900
|
|
Traction (KN)
|
2.55
|
|
Max. Traction (KN)
|
6.13
|
|
Speed(km/h)
|
4.54
|
|
Max. Speed(km/h)
|
10
|
|
Battery Voltage (V)
|
48
|
|
Battery Capacity(Ah)
|
330
|
|
Power (KW)
|
3.5*1
|
|
Length(mm)
|
2330
|
|
Width(mm)
|
914,1076 or 1214
|
|
Height(mm)
|
1550
|
|
Coupler height(mm)
|
320
|
|
Wheelbase (mm)
|
650
|
|
Wheel diameter (mm)
|
460
|
|
Min Curve radius (m)
|
5
|
|

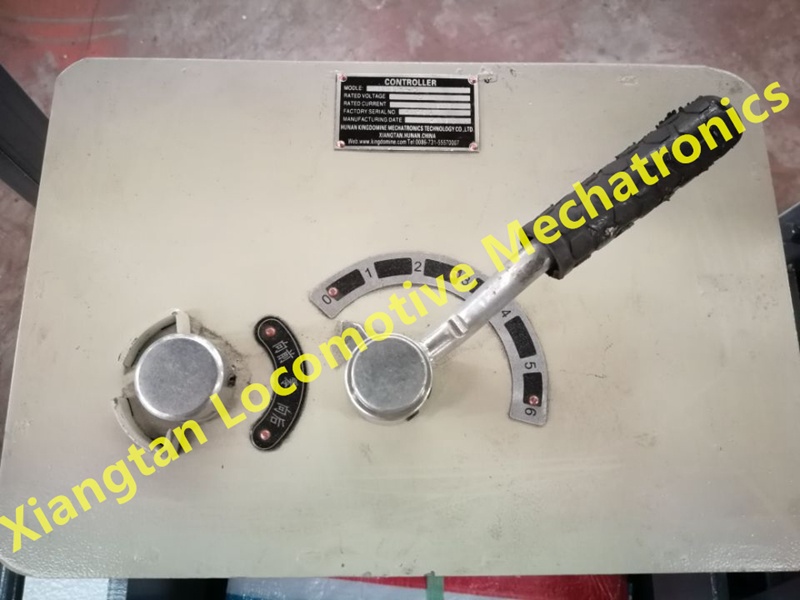

Controller
|
Resistance or IGBT
|
|
Braking method
|
Mechanical Brake
|
For More Information,please contact us.
