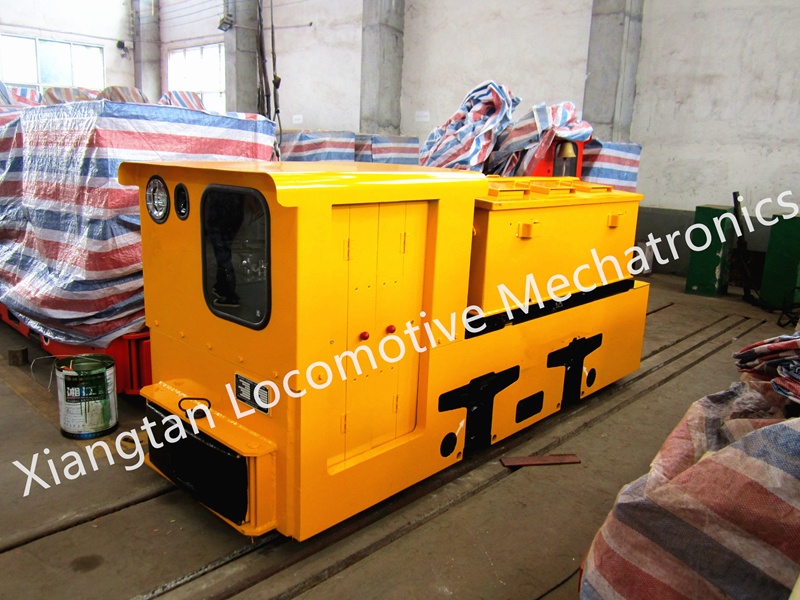

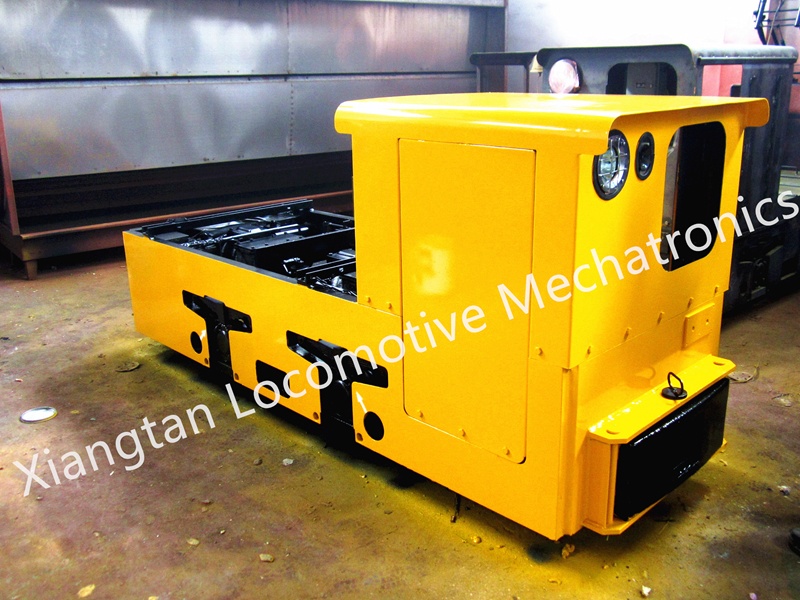

5T battery locomotive has three models: normal, safety, explosion-proof.
Main features: reasonable structure, reliable explosion-proof, smooth starting, energy-saving.
|
5T battery locomotive(90V)
|
|
Model
|
CAY5/5,6,7,9G
|
|
Adhesive / total weight (t)
|
5
|
|
Track gauge (mm)
|
500,600,762 or 900
|
|
Traction (KN)
|
7.06
|
|
Max. Traction (KN)
|
12.26
|
|
Speed(km/h)
|
7
|
|
Max. Speed(km/h)
|
14
|
|

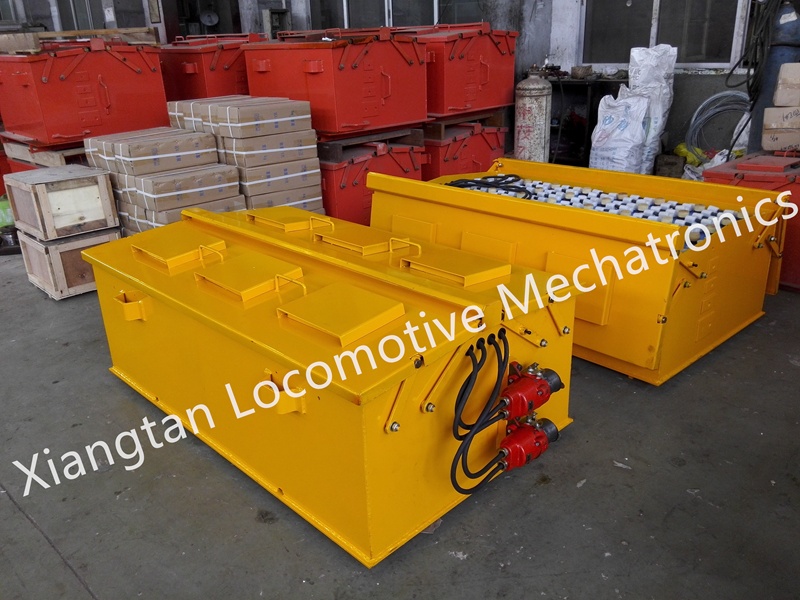

Battery Voltage(v)
|
90
|
|
Battery Capacity (Ah)
|
330/385
|
|
Power (KW)
|
7.5*2
|
|
Length(mm)
|
3100
|
|
Width(mm)
|
1034, 1082, 1220
|
|
Height(mm)
|
1550
|
|
Coupler height(mm)
|
210/320
|
|
Wheelbase (mm)
|
850
|
|
Wheel diameter (mm)
|
520
|
|
Min Curve radius (m)
|
6
|
|
Controller
|
Resistance or IGBT
|
|
Braking method
|
Mechanical Brake + Electrical Brake
|
