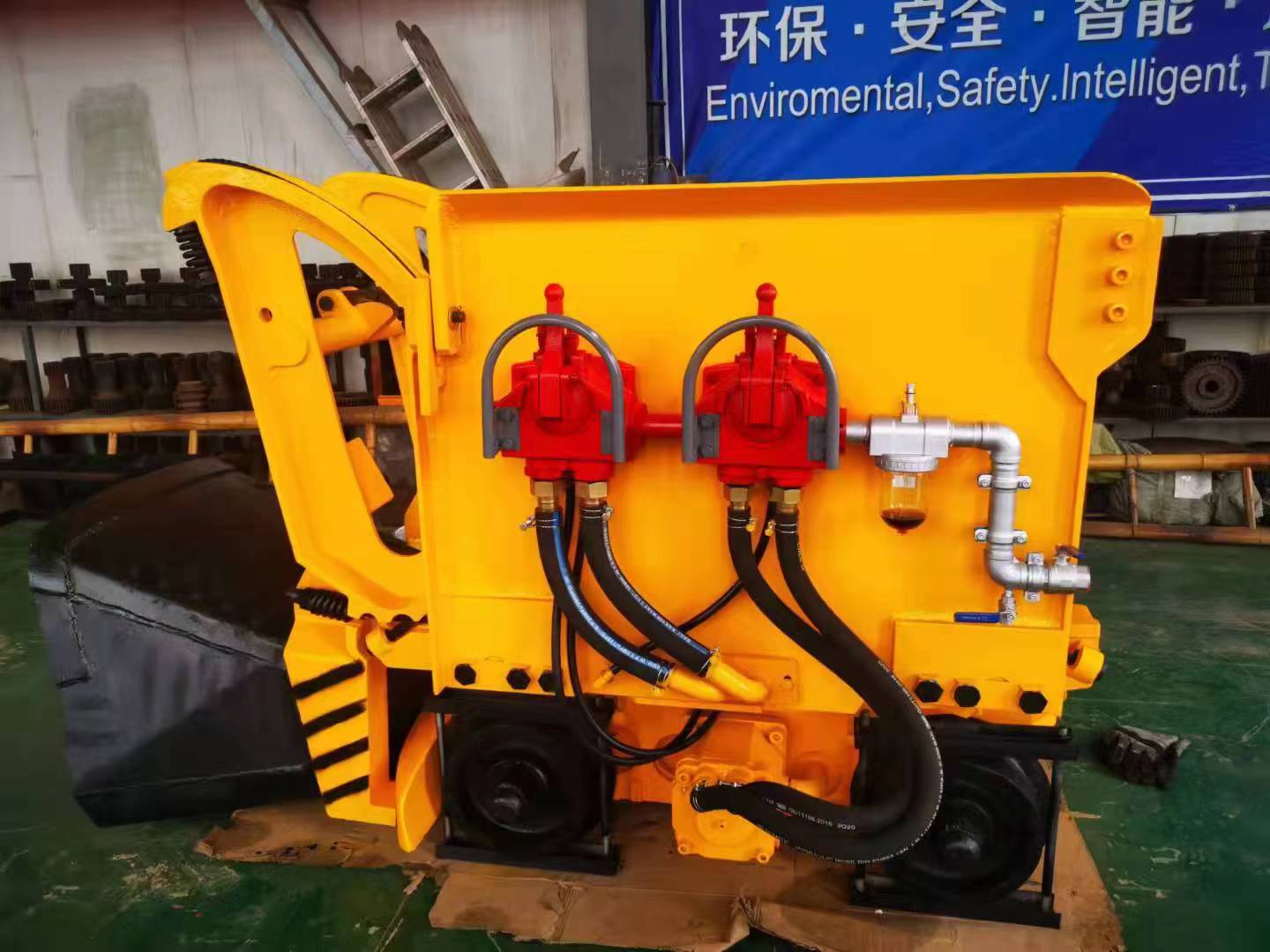

ZQ-17 Penumatic Rock Loader
Work Pressure: 4.5-6.6 Pa
Speed: 1.14 m/s
Air consumption: 8-13 m³/m
|
Model
|
ZQ-17
|
|
Loading Capacity
|
20-30 m³/h
|
|
Bucket Volume
|
0.17 m³
|
|
Maximum Lifting Height Of Bucket
|
1975 mm
|
|
Track Gauge
|
500 mm
|
|
Kinetic Energy
|
Pneumatic
|
|
Travel Speed
|
1.14 m/s
|
|
Working Air Pressure
|
0.45-0.7MPA
|
|
Travel Motor Power
|
9 kW
|
|
Lifting Bucket Motor Power
|
15 kW
|
|
Unloading Height
|
1260 mm
|
|
Maximum Loading Width
|
1910 mm
|
|
Unloading Distance
|
550 mm
|
|
Overall Dimension mm
|
Length (when the bucket is down)
|
2230 mm
|
|
Width (when the pedal is down)
|
1360 mm
|
|
Width (when the pedal is lifted)
|
1090 mm
|
|
Height (when in transit)
|
1390 mm
|
|
Weight
|
|
2600 kg
|
